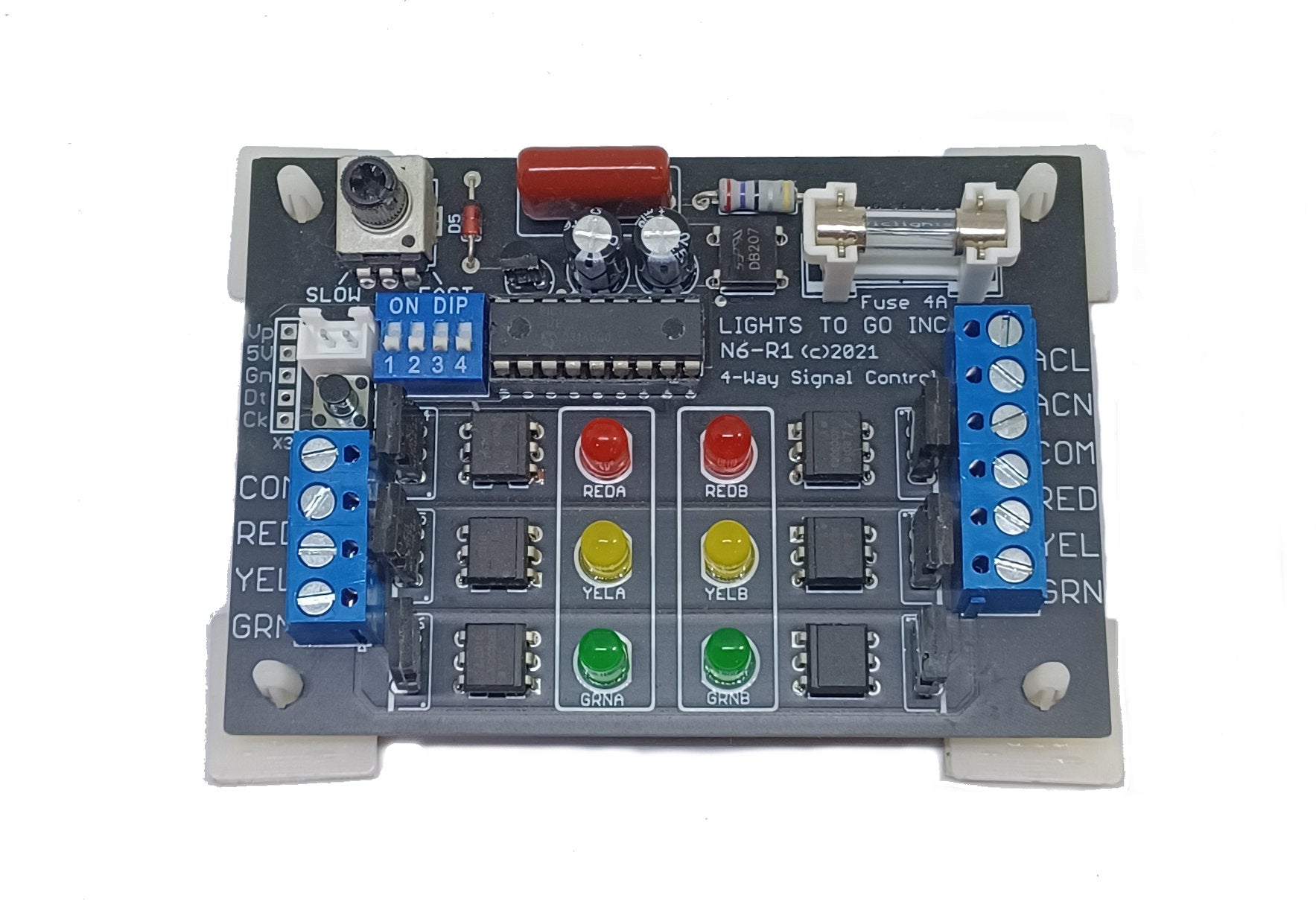

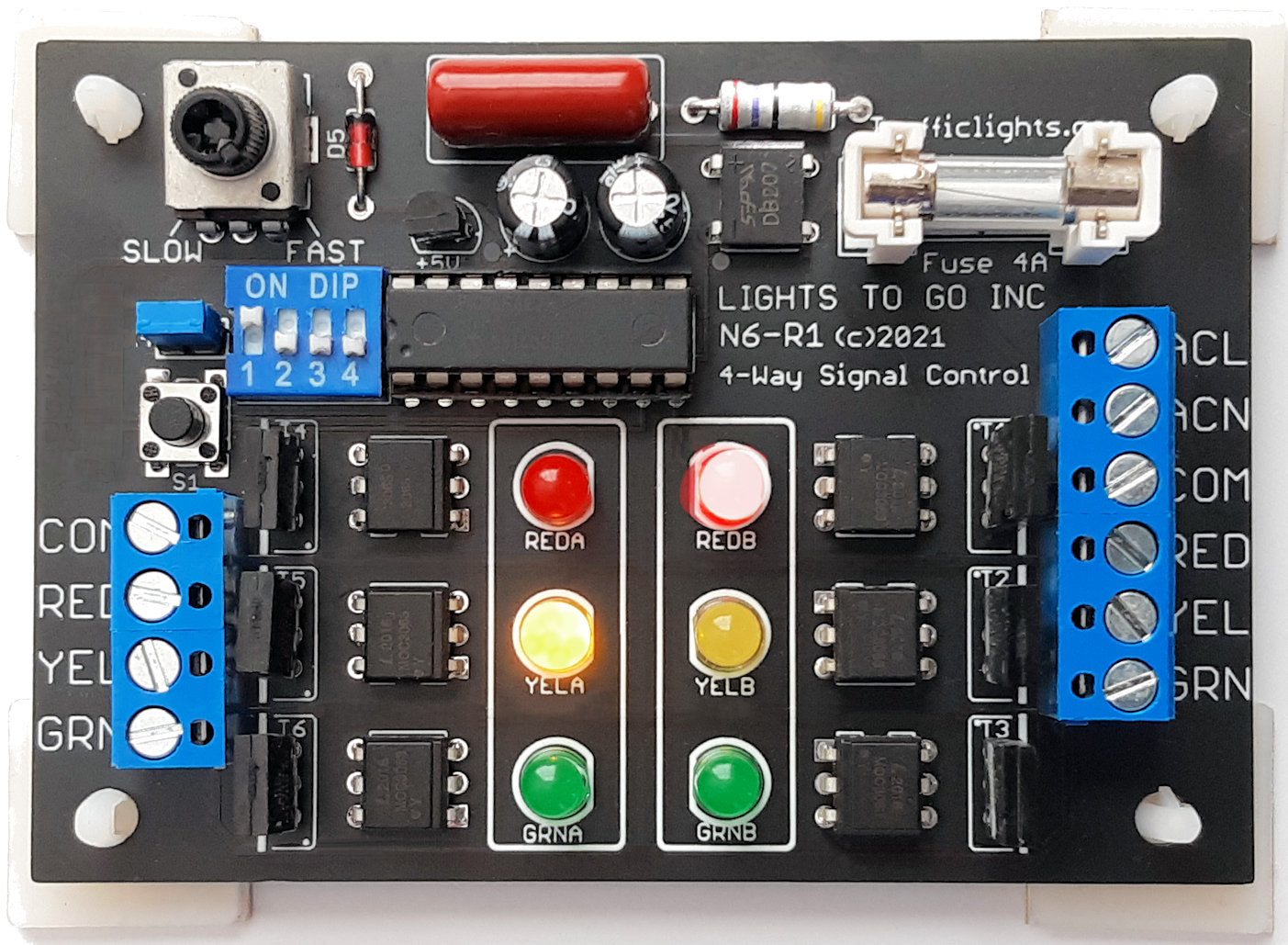

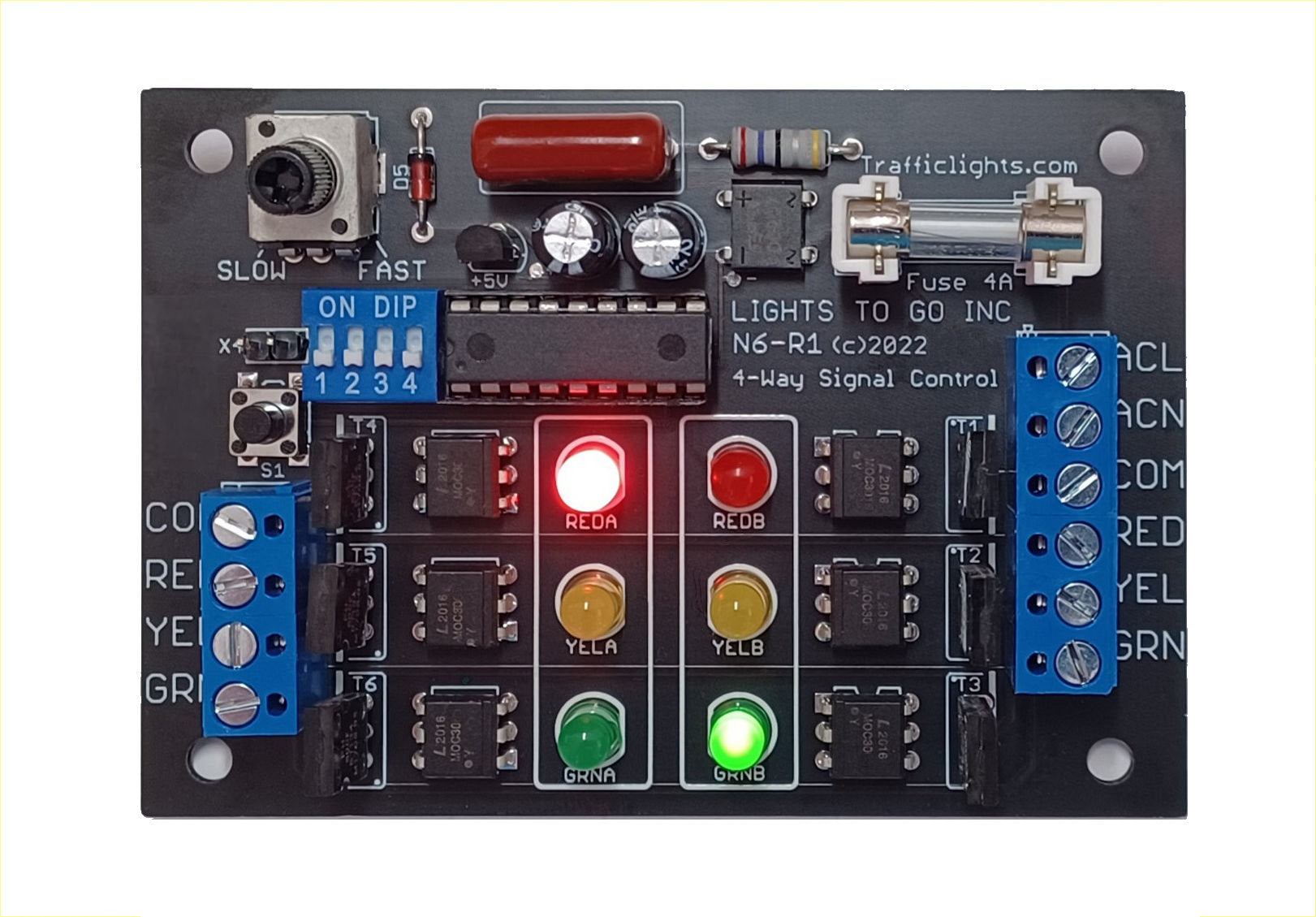

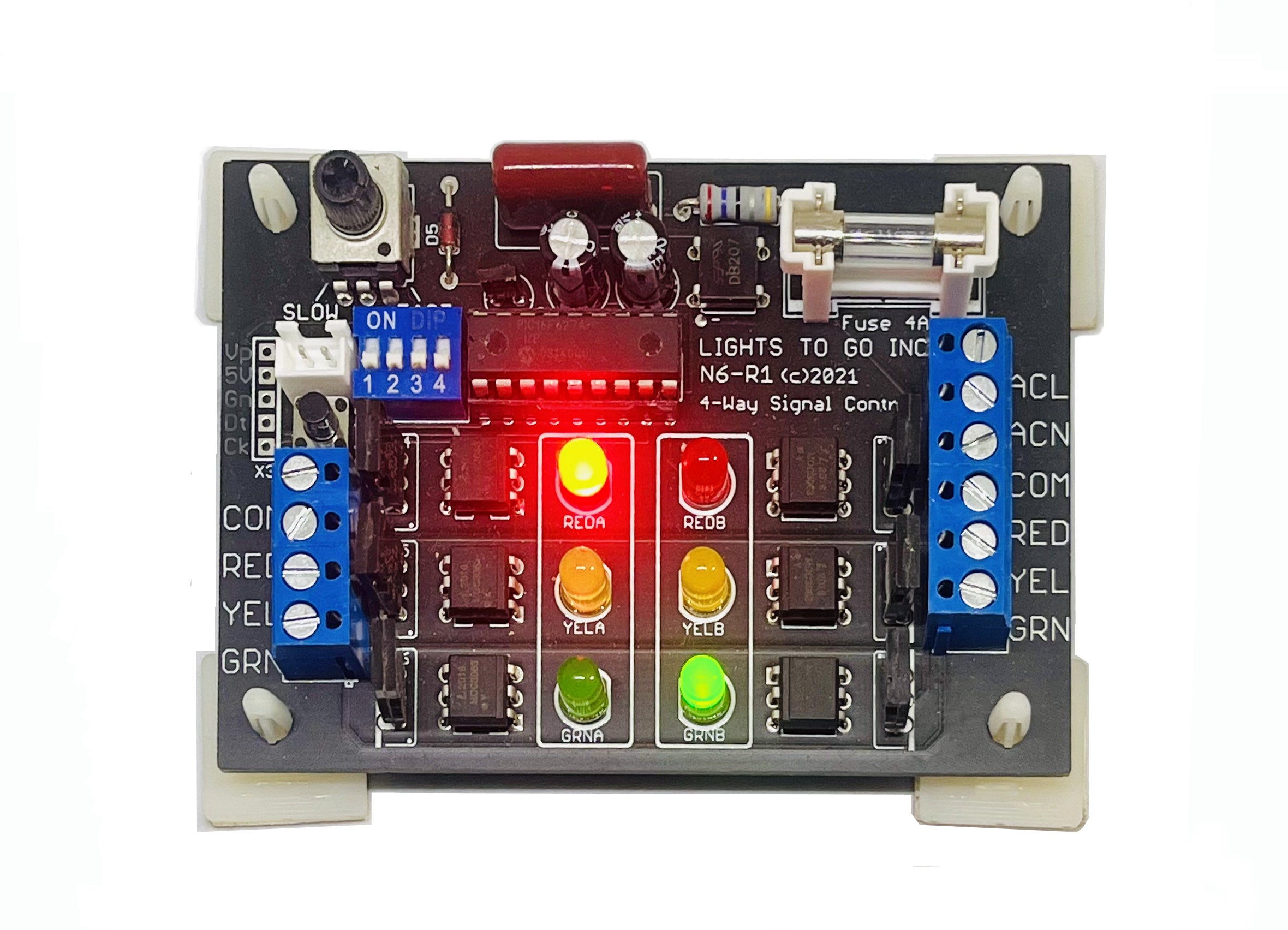

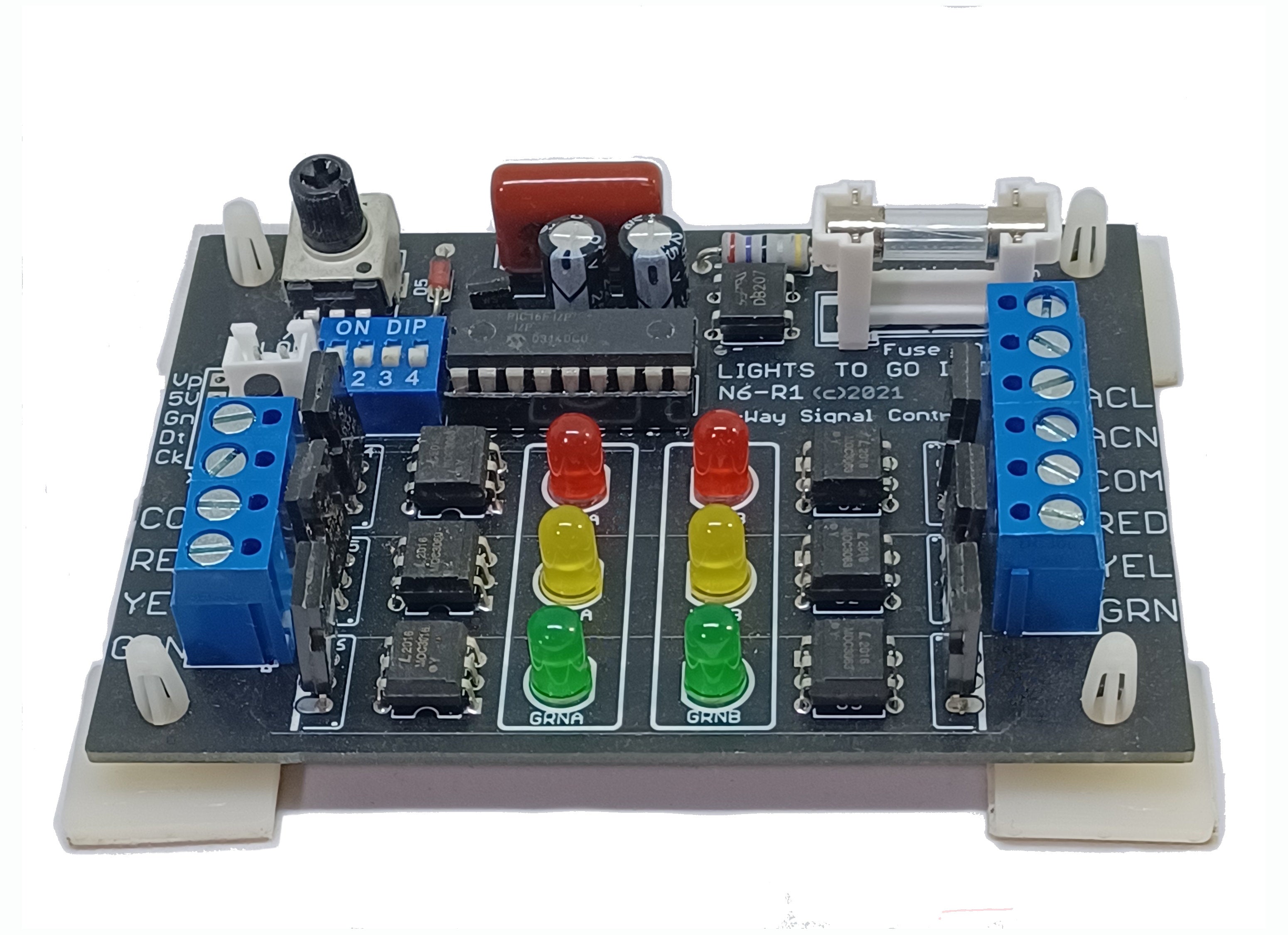

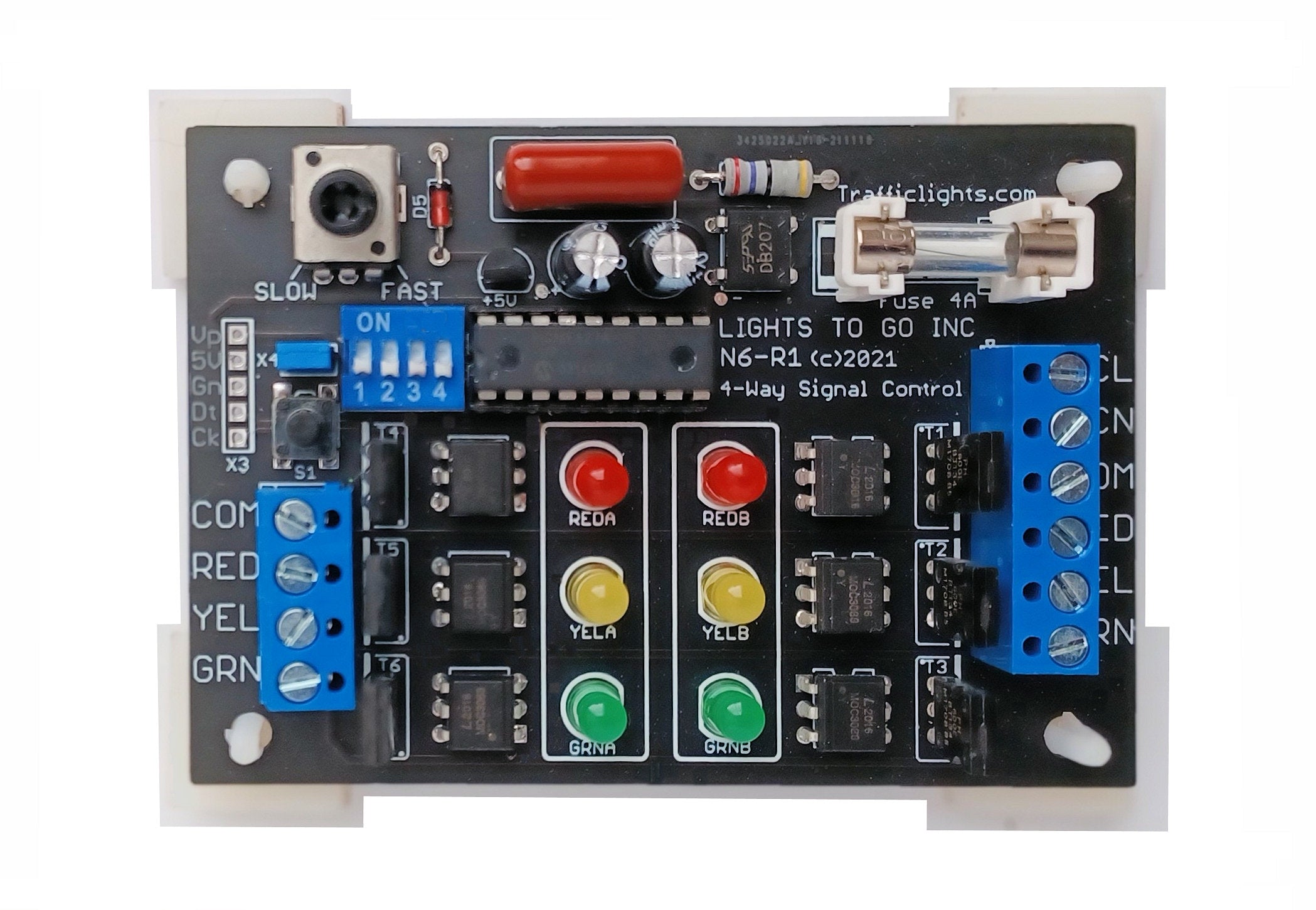

N6 - 4 Direction Controller

Description

The all new designed N6 - 4 way controller replaces the popular T6!

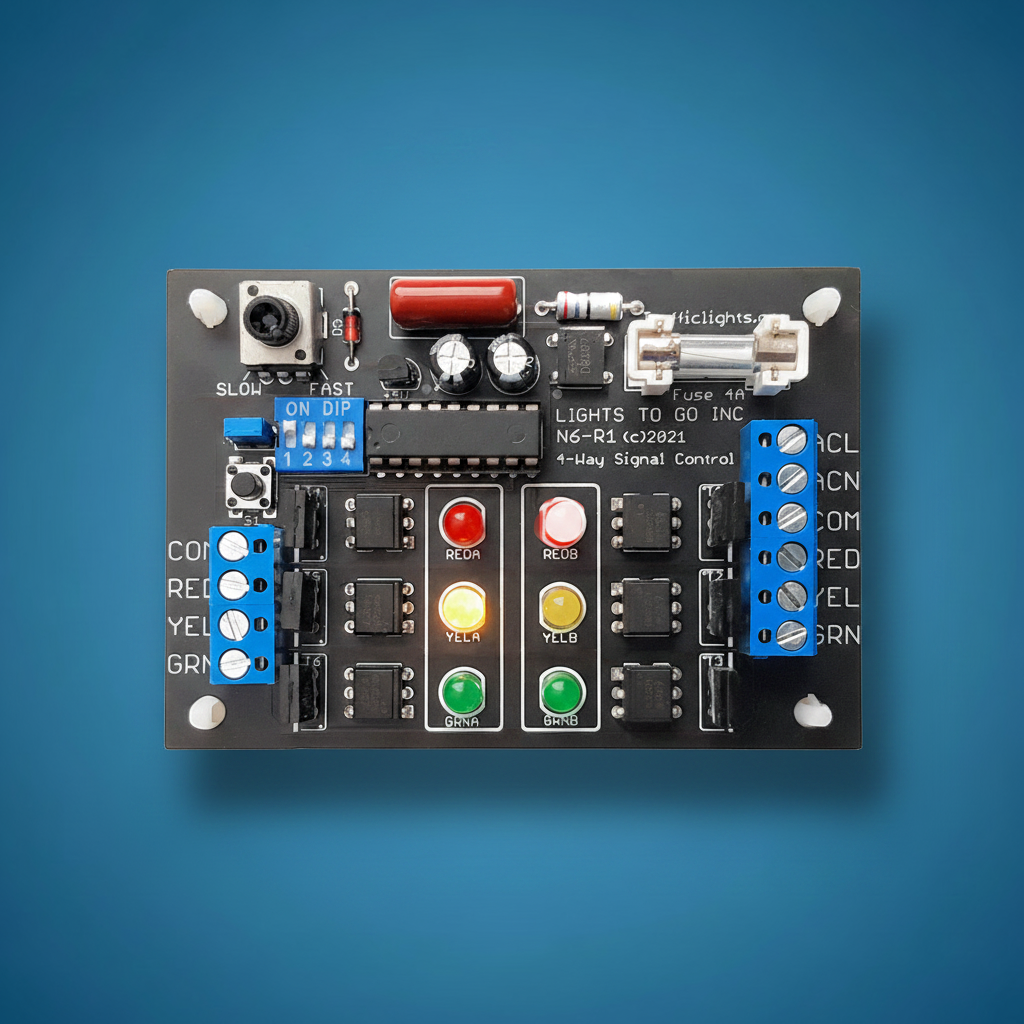

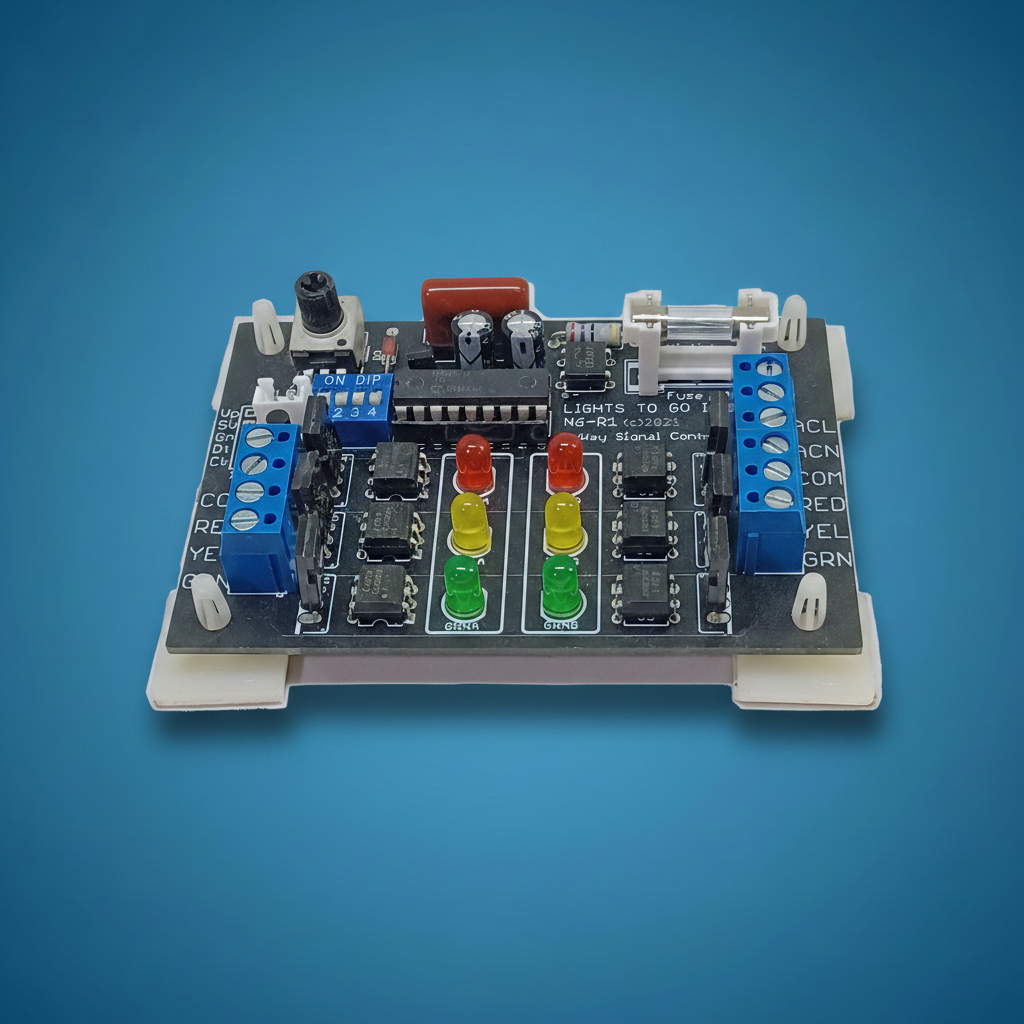

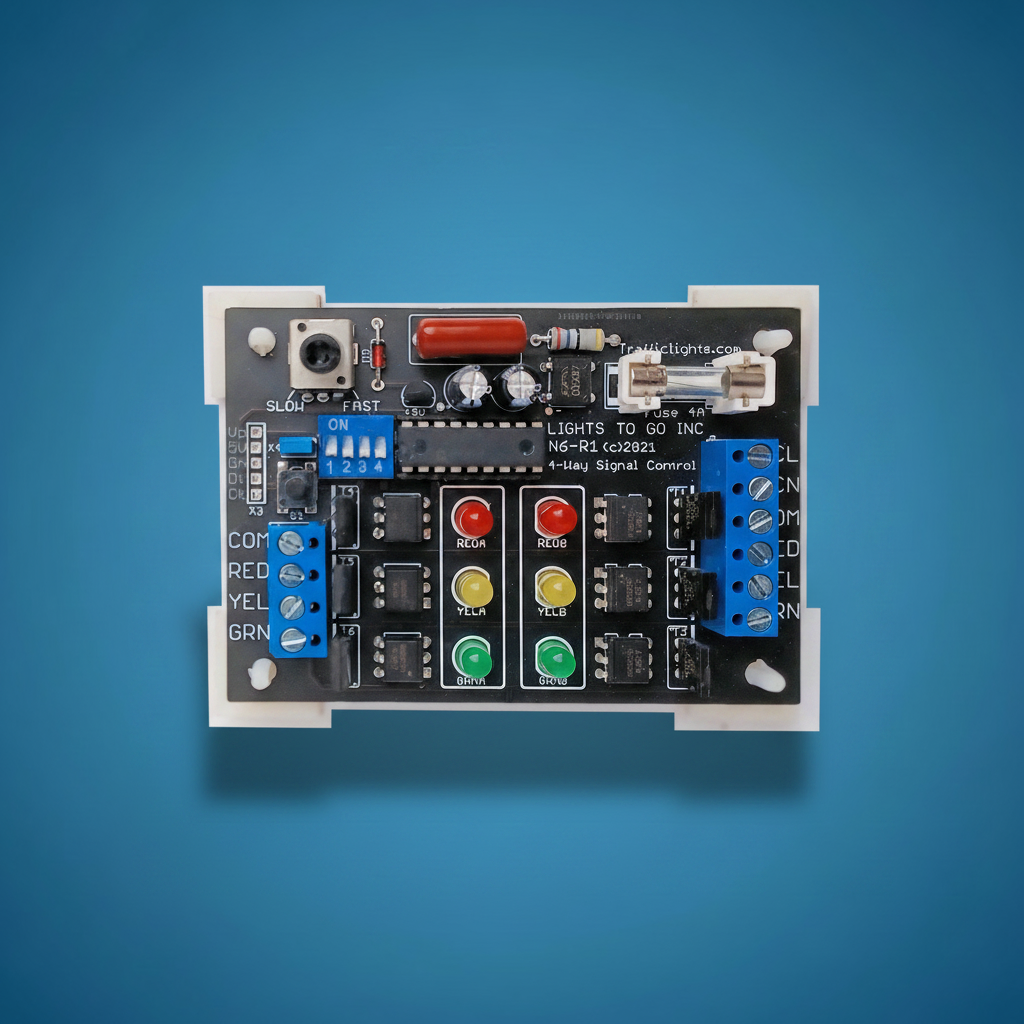

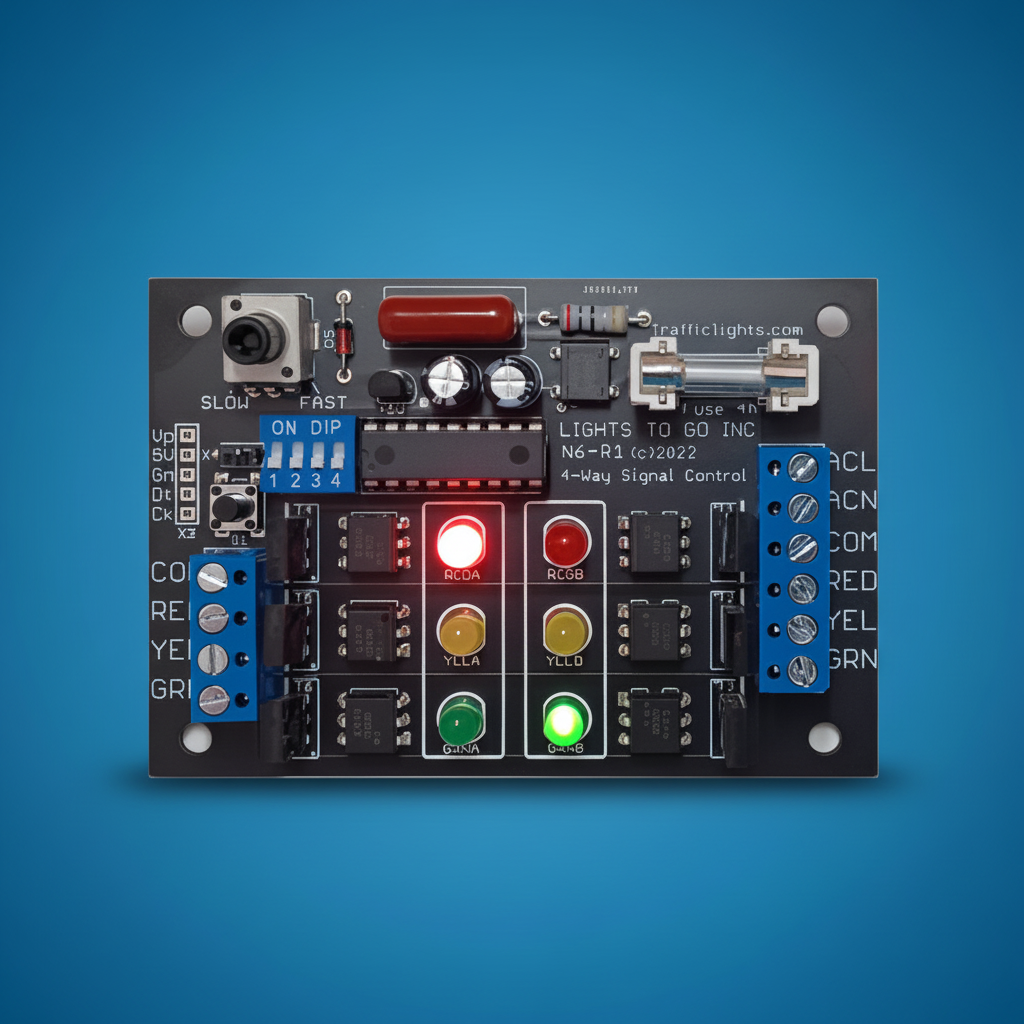

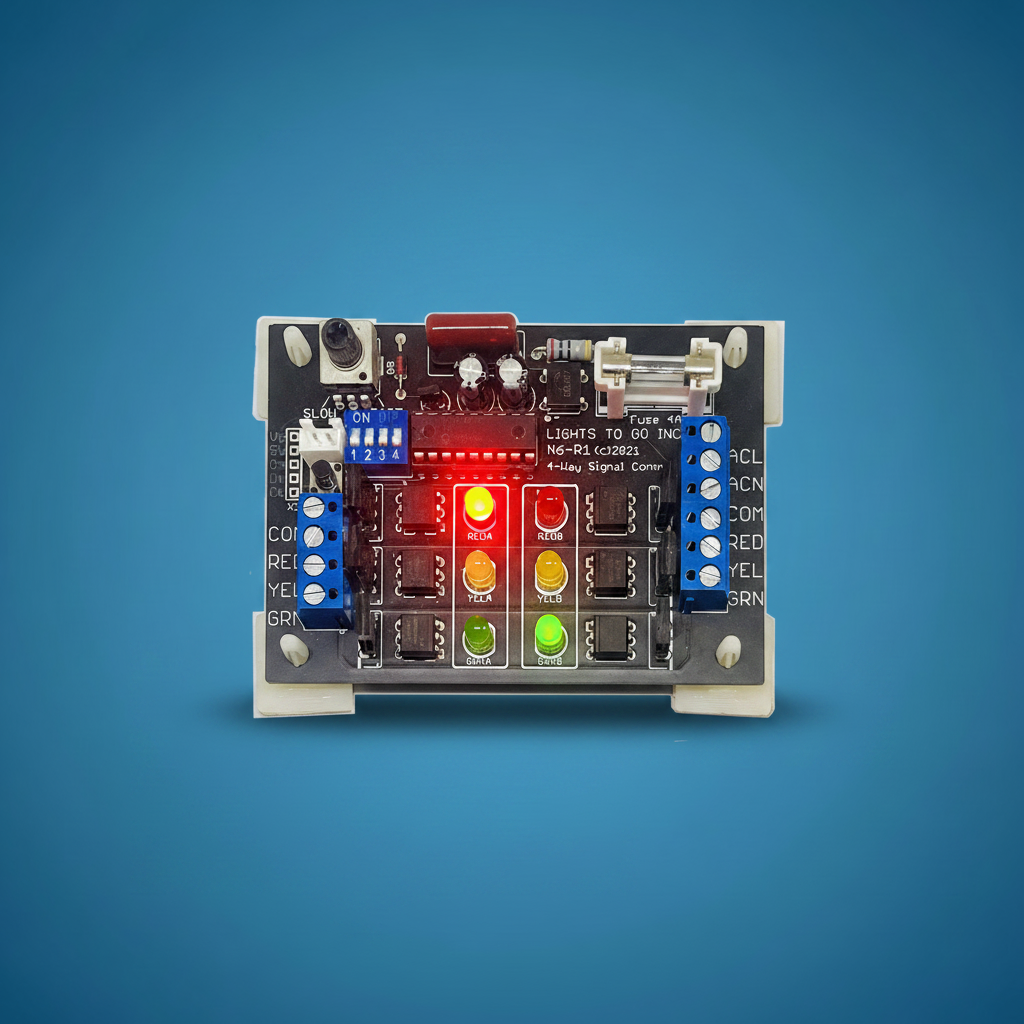

The all new N6 is a 4-way AC Traffic signal display controller.

It features:

• 4-way sequence to run 4 Red/Yellow/Green signals
• Adjustable speed cycle
• 6 AC outputs

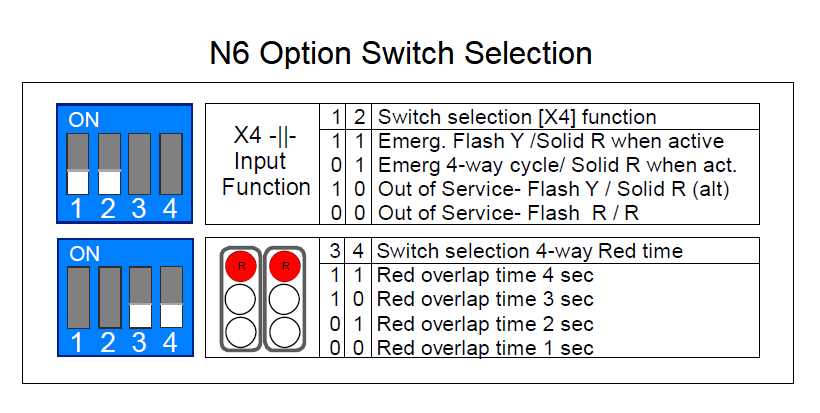

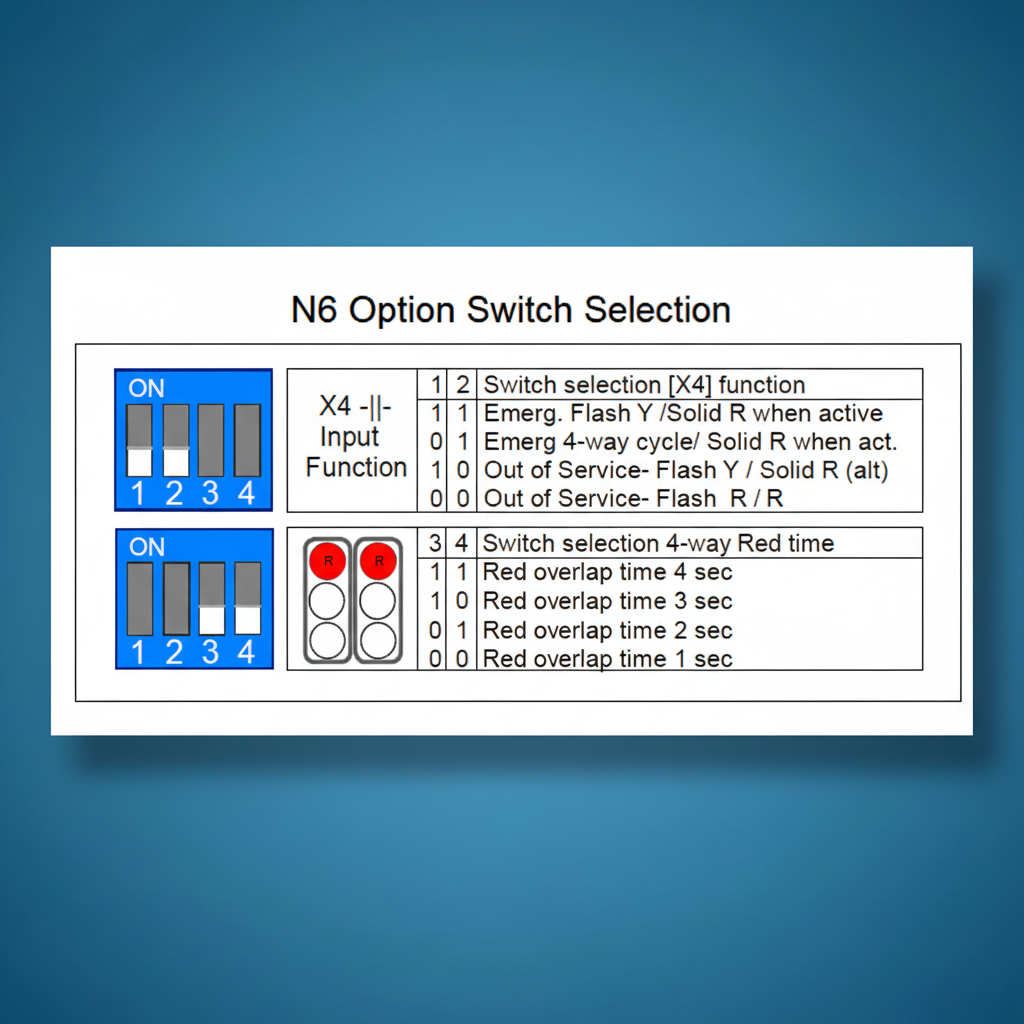

• Selectable 4-way Red time
• Out of service (flashing) modes
• Emergency vehicle access cycle
• Power supply = 120VAC, 60Hz +/- 10%
• Fuse 3.15 - 4A, 250V (5x20mm)
• 1.5A (67w x2) max load per channel
• Works with incandescent or LED lamps
• 1 year mfg warranty

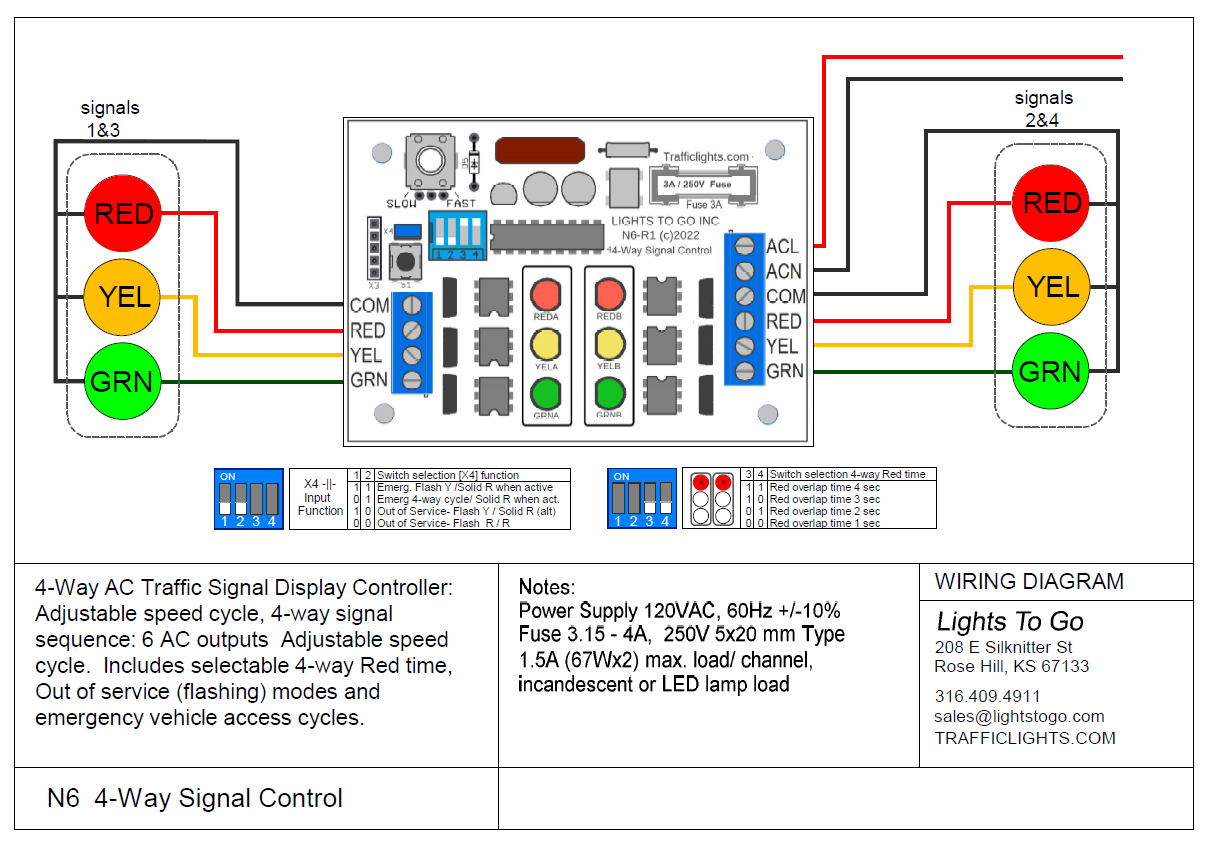

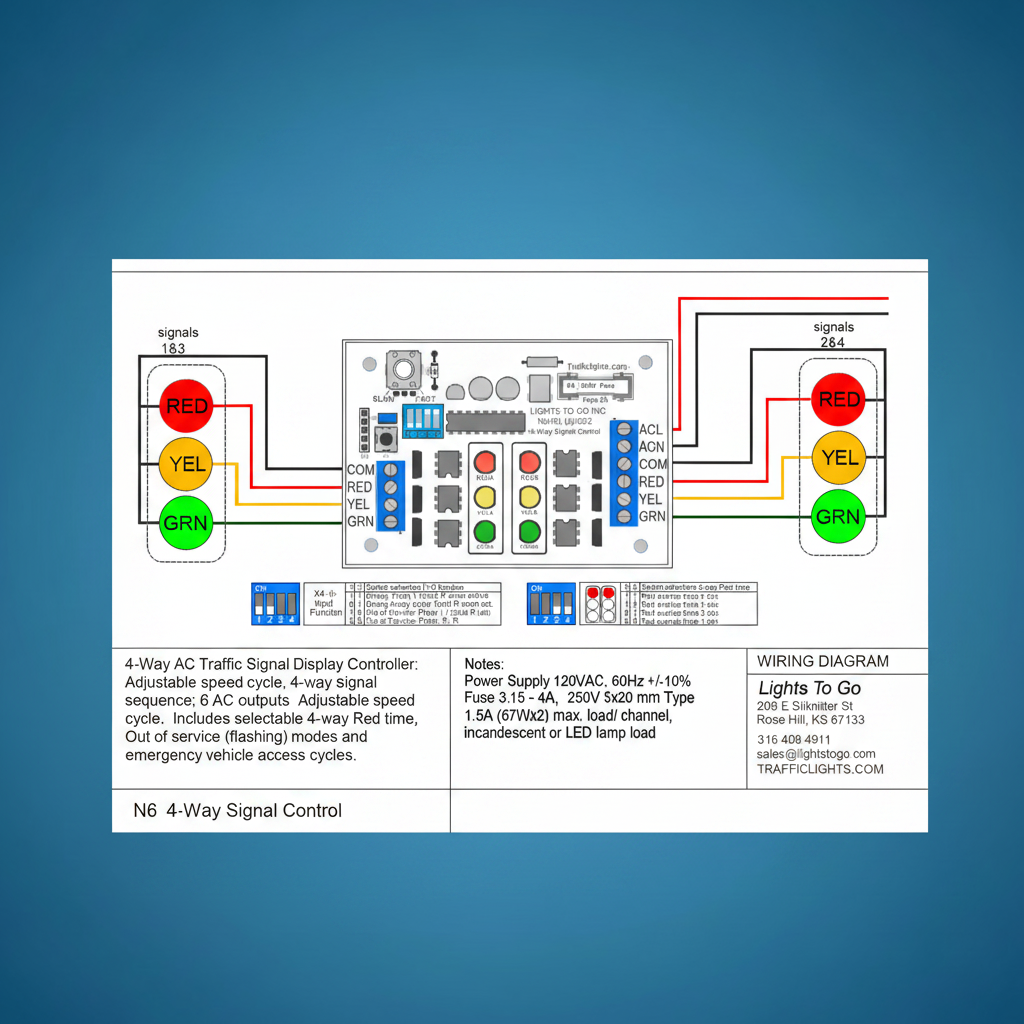

Click here to download the N6 wiring diagram!
